Carbon-D - Capacitive EQ - 500 series module

  • $643.00
    Unit price per

Now with up to 20% discount.
Order one > get 10%
Order two > get 15%
Order four > get 20%
Mix-and-match different modules for quantity discount.
Discount calculated on check-out.

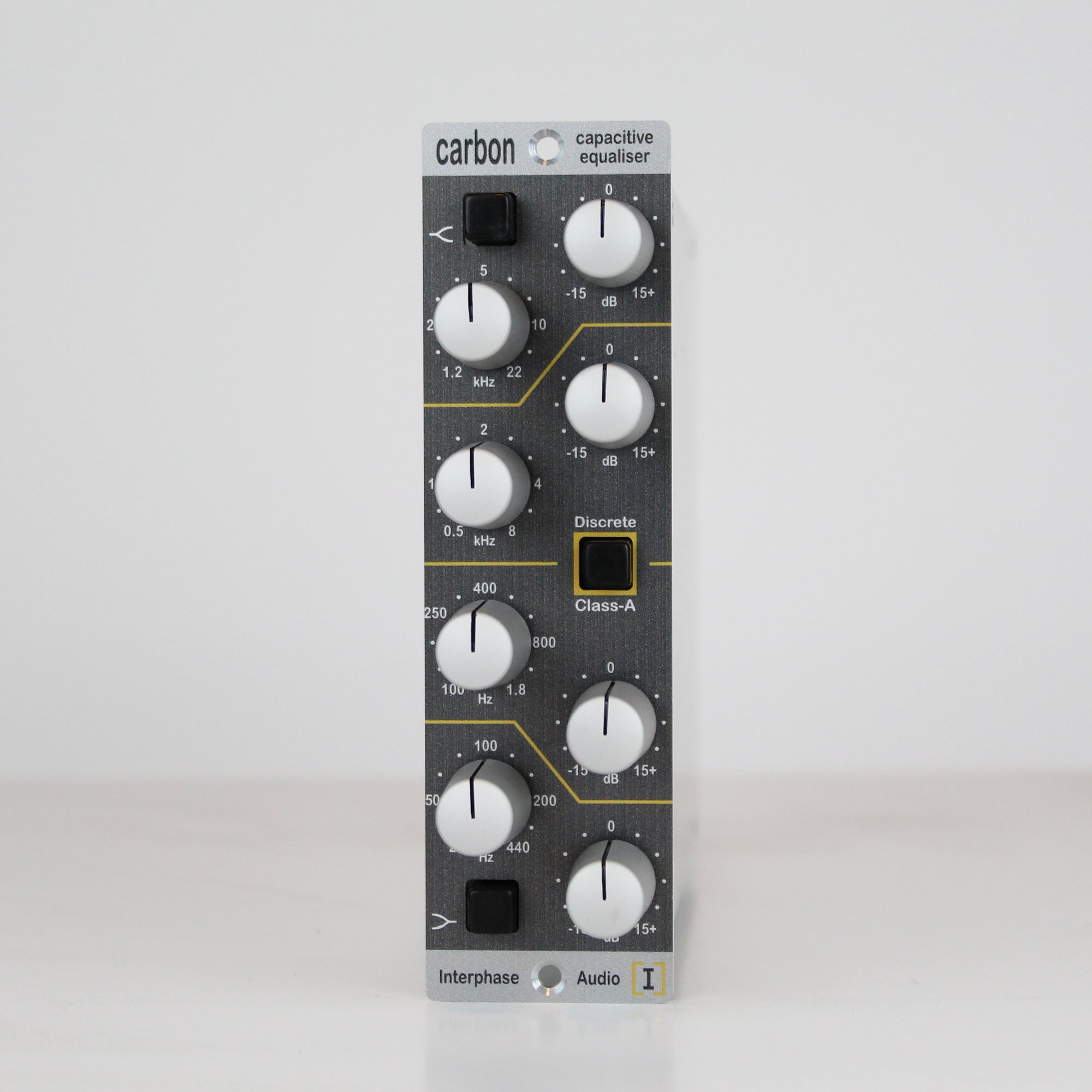

The Interphase Audio Carbon-D is a single channel 500 series module with 4-band Capacitive EQ.

Capacitor based EQ circuits can be considered the “classic” equaliser design, as used in a lot of well known EQ’s (SSL, API, Neve, etc).

Carbon is our take on this classic EQ.

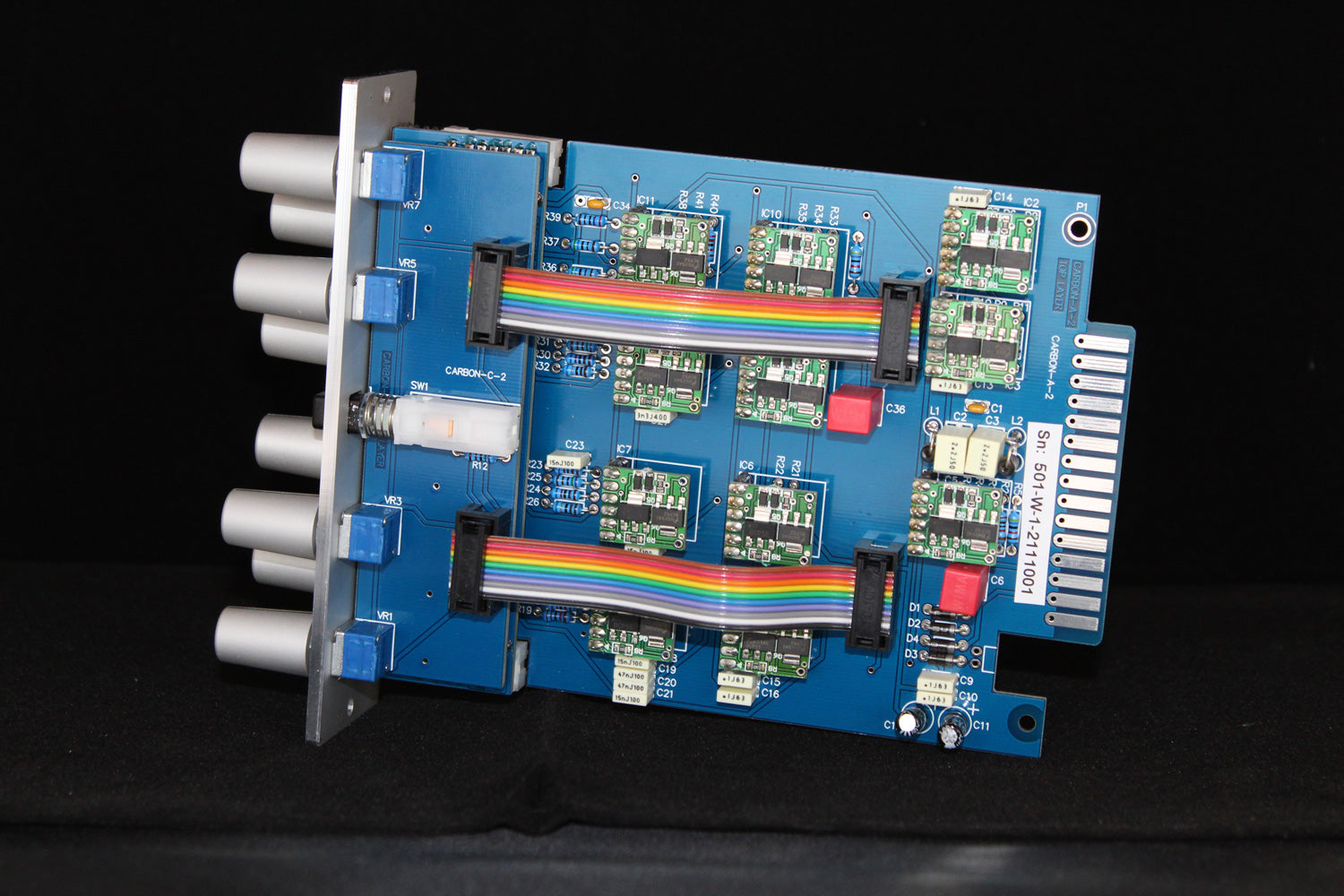

Carbon is a full Class-A, discrete design, and all components have been carefully chosen and matched to provide an extremely musical sound.

This is definitely not a “clone” or “copy” (we at Interphase Audio do not build clones or copies of anything).

Like all our products, Carbon is unique and features great sound and straight forward functionality.

The four EQ bands have large overlapping frequency controls, making it well-suited for minimising problematic frequencies, or giving an extra boost to others.

The HF and LF band can be used as either shelf or peak, for extra punch, dimension or control of high- and low-end.

Each band can be cut or boost with as much as 15dB per band.
