Iridium DIY - Inductor EQ

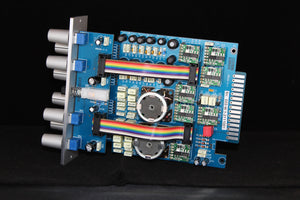

This is the DIY version of our Iridium 500 module.
It comes as a partial kit, with all hard-to-get parts and full instructions.
You'll need to get standard parts (like resistors and capacitors) yourself.
Iridium is an advanced build intended for DIYers who have already built at least a couple smaller projects. You should be confident in your soldering ability, and be able to identify the correct orientation for capacitors, semiconductors and diodes. We advice against ordering this if you are just starting with DIY.
Iridium - 4-band Inductive EQ
Inductor based circuits are the “holy grail” of equaliser designs.
These were used for example in the much favoured Pultec equaliser design, which dates back to the late 1950’s.
Owing to their unique electro-mechanical properties, inductors impart a character all of their own, which is very distinctive.
The Iridium uses 16 inductors spread out over the four bands, with custom-wound inductors in the low-mid and low bands, giving precise control and the inductor sound on each band.
Iridium is a Class-A, discrete design, with all components carefully chosen and matched to provide an extremely musical sound. You’ll get a very distinctive sound, which most sound engineers love.
However, this circuit is a decidedly modern design with updated techniques and components that were simply not available 60 years ago. This is definitely not a “clone” or “copy” (we at Interphase Audio do not build clones or copies of anything)
As a consequence of using inductors, this provides a “peaking” or “bell” characteristic, giving tight control of the frequency selected.
Each band provides switch selection of any of 6 carefully selected frequencies chosen at musically pleasing intervals.
Each band allows very fine control of up to 15dB cut or boost per band.
