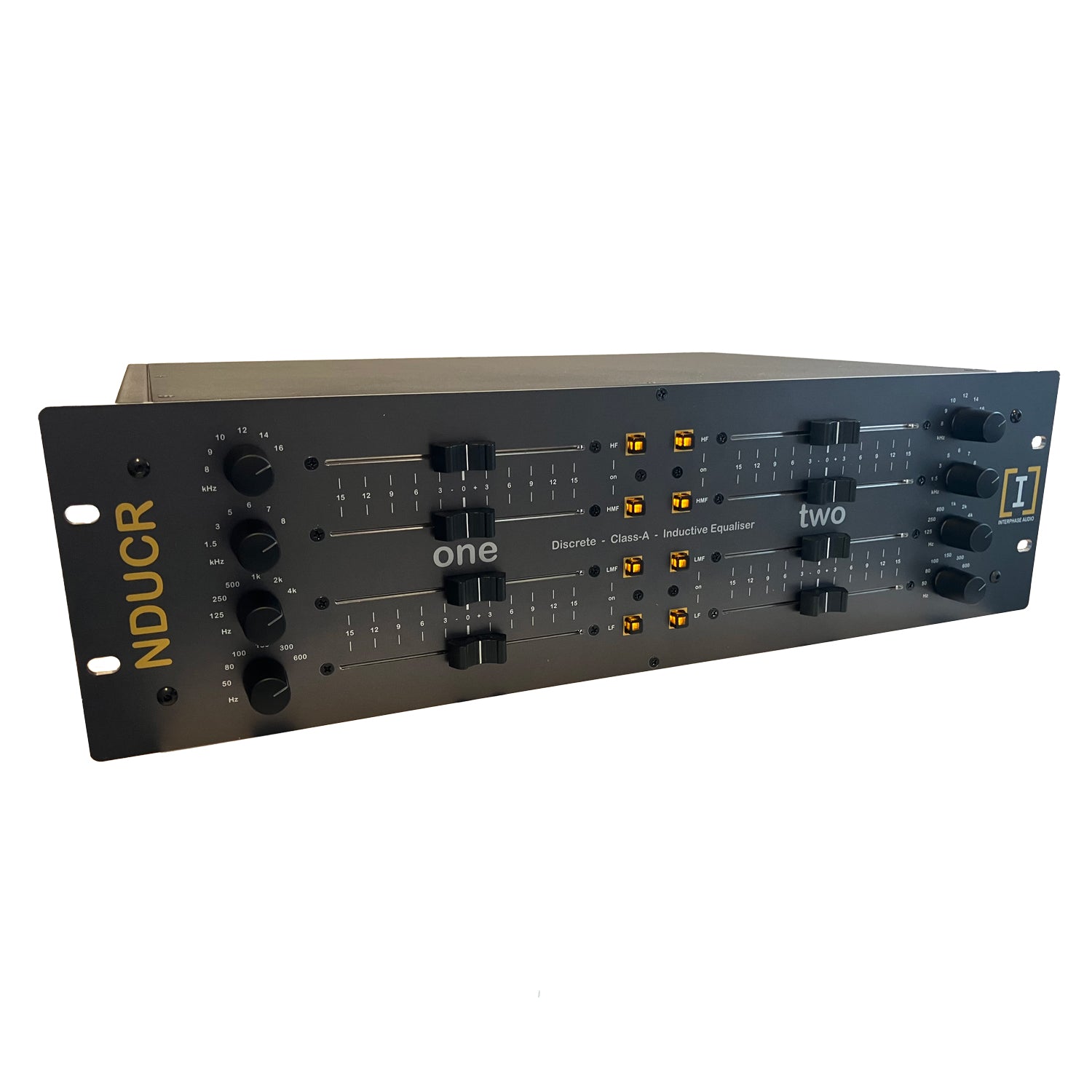

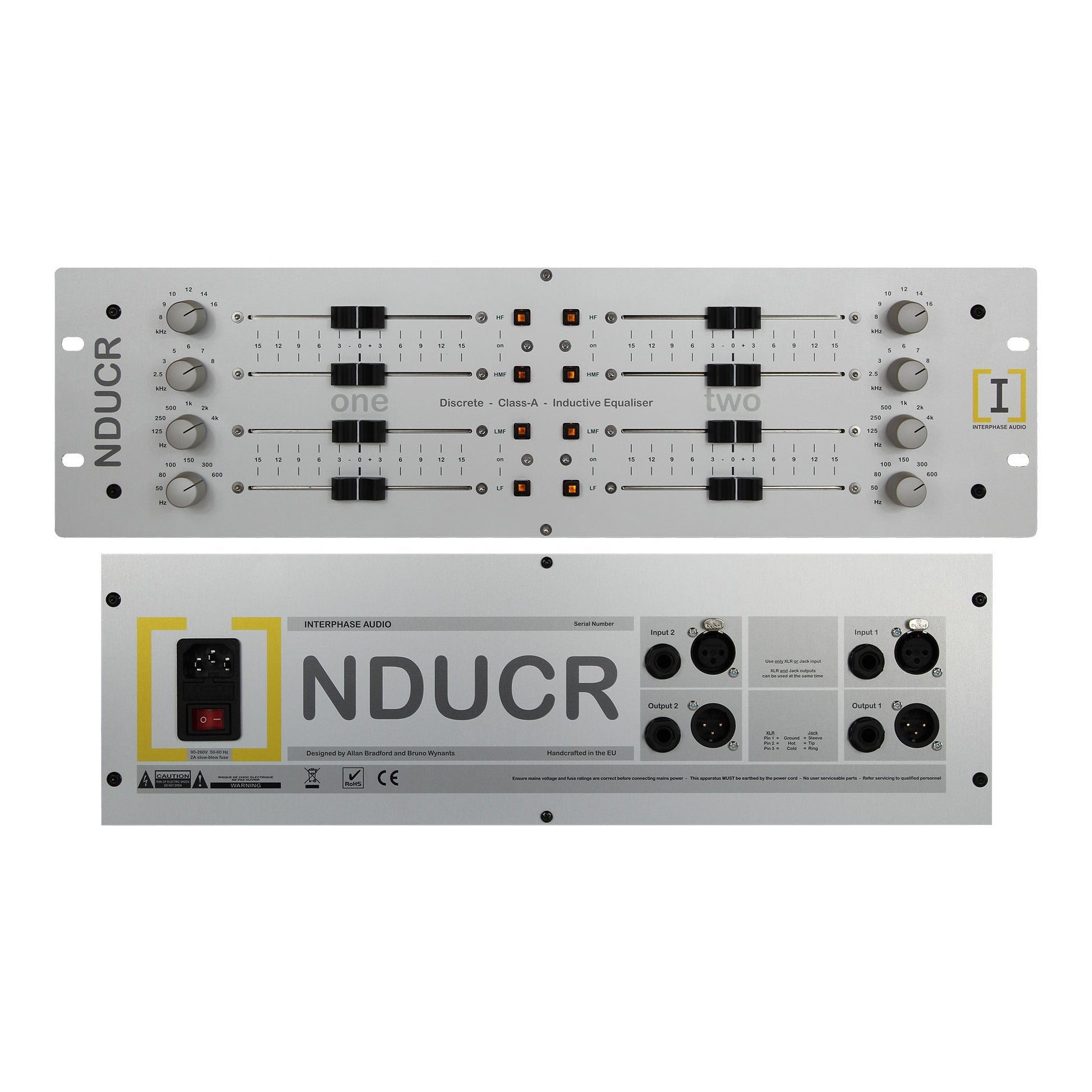

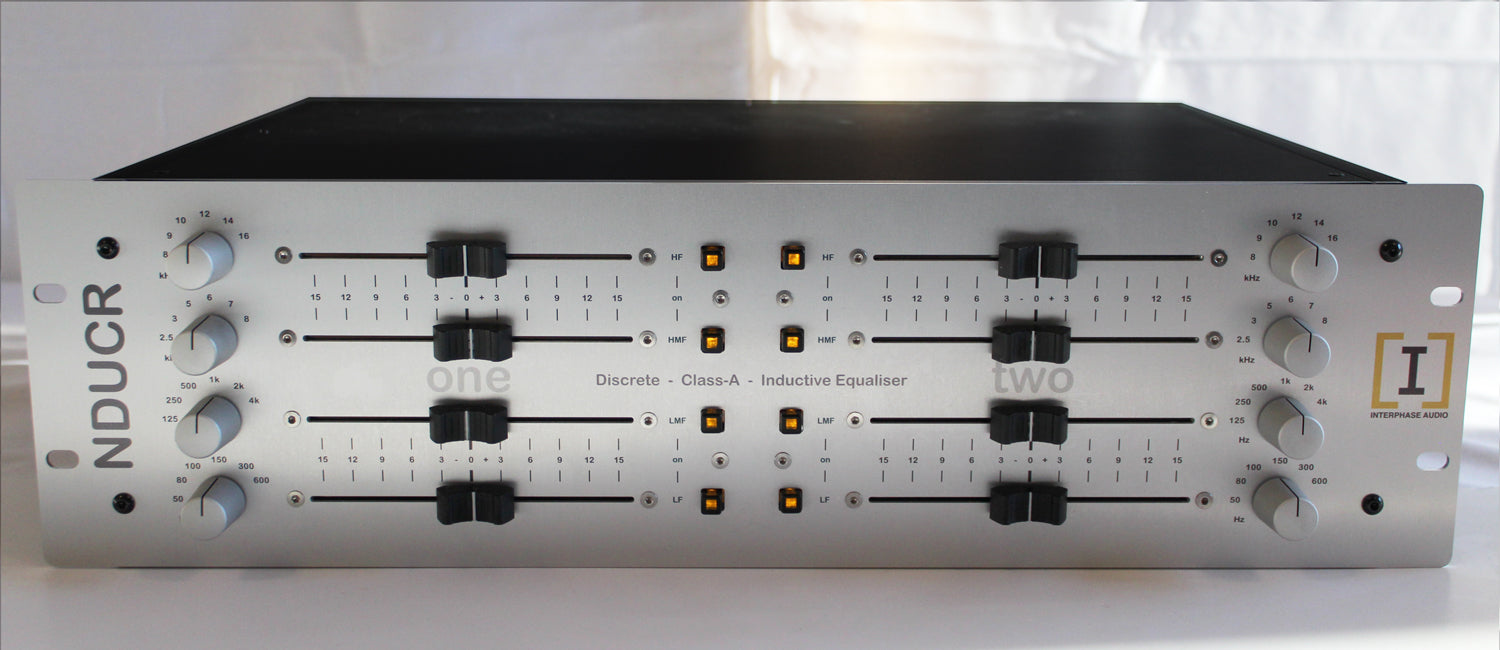

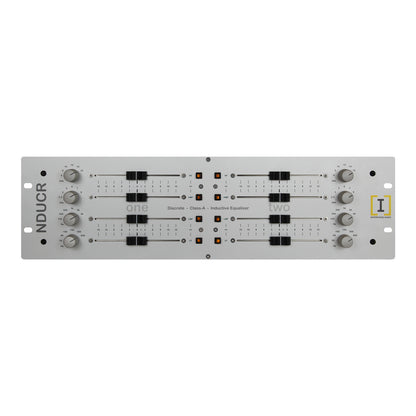

NDUCR - Inductor EQ
Taken from the middle section of the Ark input channels,
the NDUCR is the rackmount version of the Inductive equaliser part of this middle input section.
The NDUCR is designed to add colour to your signal, and silky smooth colour that is.
The NDUCR features 2 channels of 4-band Inductive Equaliser.

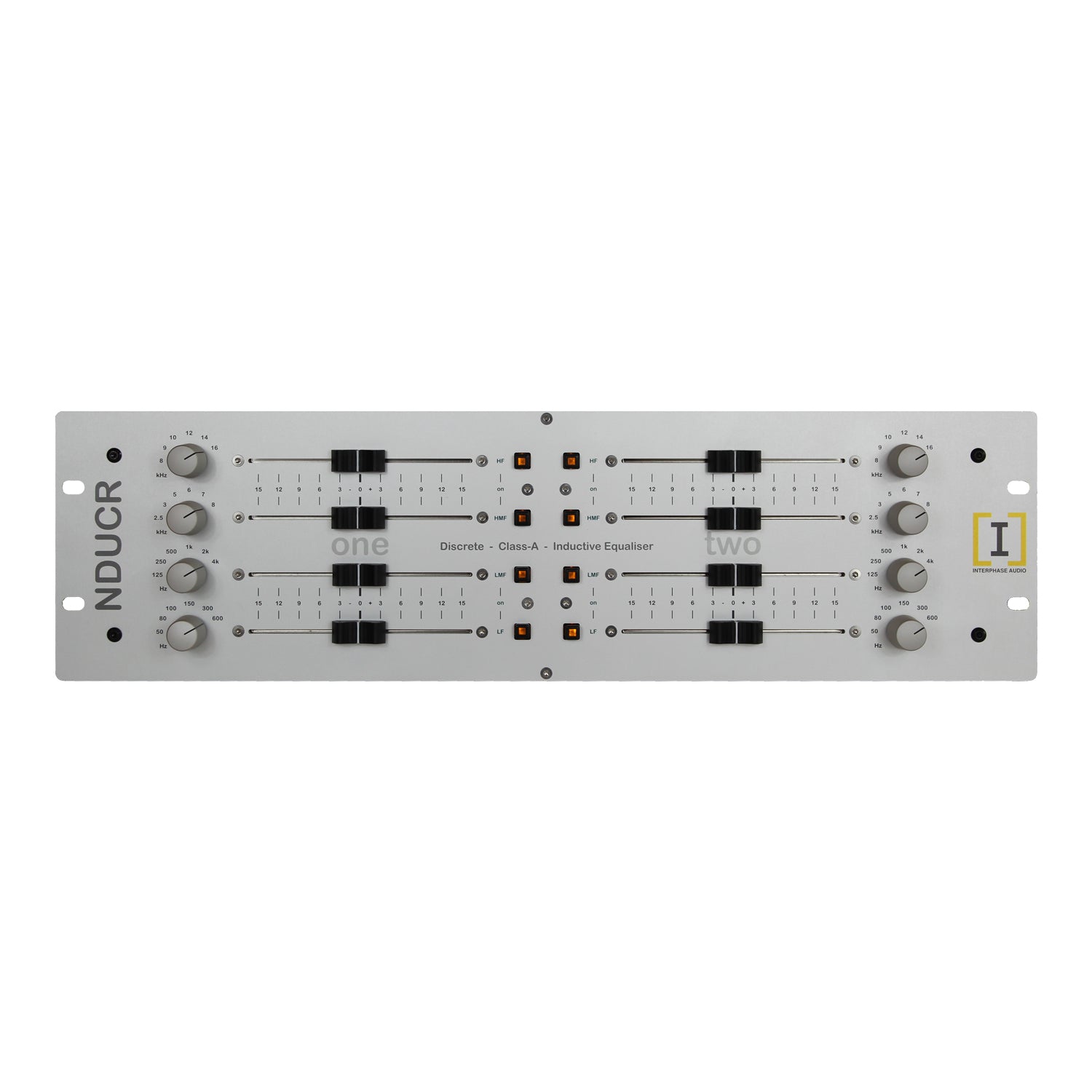

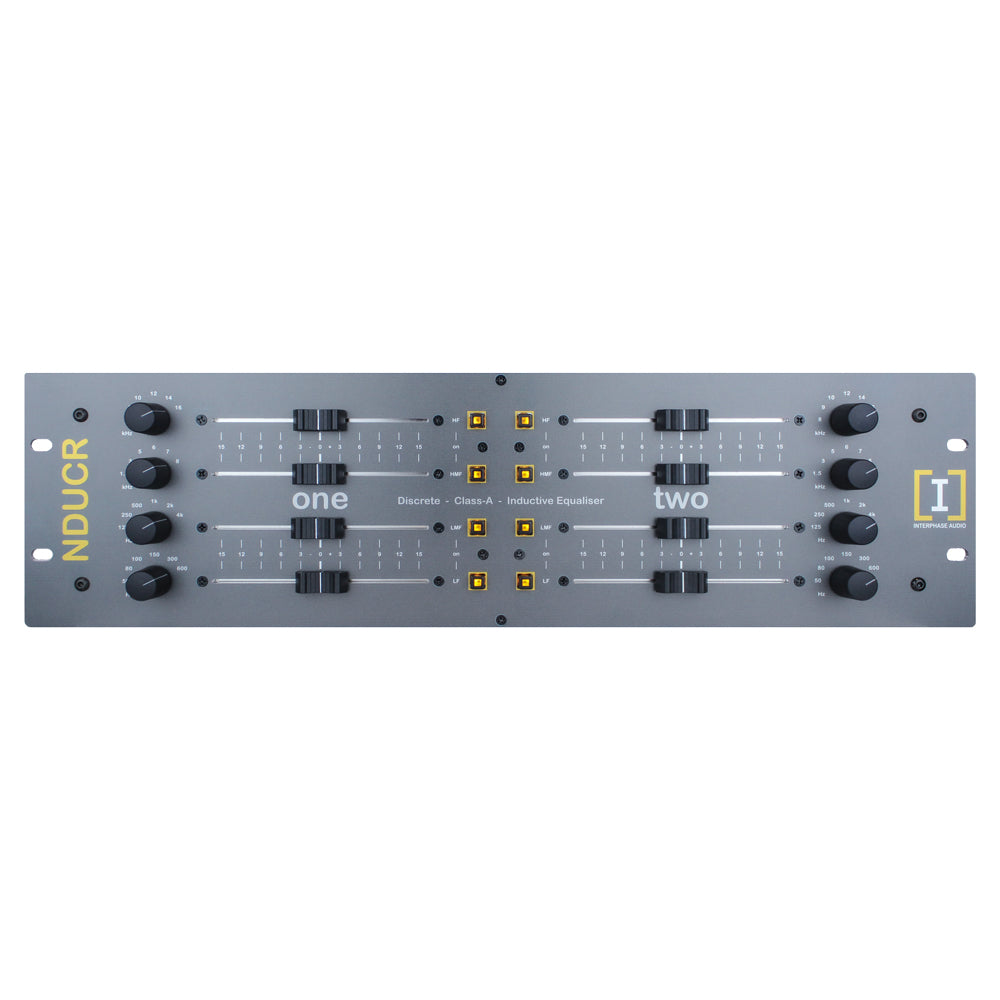

* Contrary to our other EQs, the 4-bands are vertically aligned (channel one on the left, channel two on the right)
* Each band can be individually activated / bypassed
* Larger frequency select knobs give better hands-on control of selected frequency
* High-Quality 100 mm Bourns level faders offer the finest control of cut and boost
NDUCR Specifications
• Input impedance: 30kohm
• Common mode rejection: 80dB
• Distortion: 0.001% (+4dBu output, 1kHz)
• Frequency response: 7Hz to 70kHz (-3dB)
• Boost / Cut range: +/-15dB (continuously variable)
• HF Frequency: 8, 9, 10, 12, 14, 16 kHz (stepped)
• HMF Frequency: 1.5, 3, 5, 6, 7, 8 kHz (stepped)
• LMF Frequency: 125, 250, 500, 1k, 2k, 4k Hz (stepped)
• LF Frequency: 50, 80, 100, 150, 300, 600 Hz (stepped)
• Filter Q: 1.2 (just over 1 octave)
• Maximum input level: +32dBu
• Maximum output level: +32dBu (10k load)
• Nominal input and output level: +4dBu (electronically balanced)
• Output impedance: 100 ohm
• Noise floor (typical, unweighted, EQ on): -80dBu
• Noise floor (unweighted, EQ off): -100dBu
