Zinc Duo - Instrument Amplifier

Zinc Duo - because everyone wants TWO.

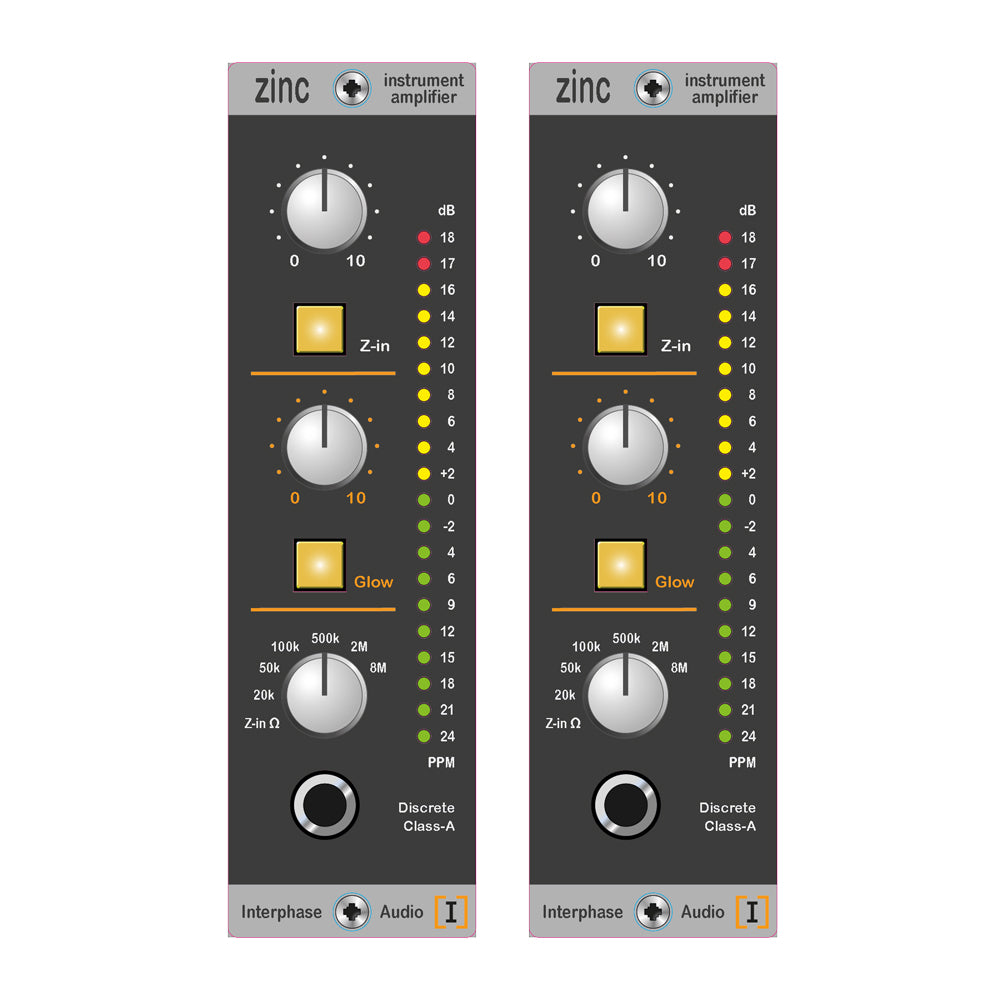

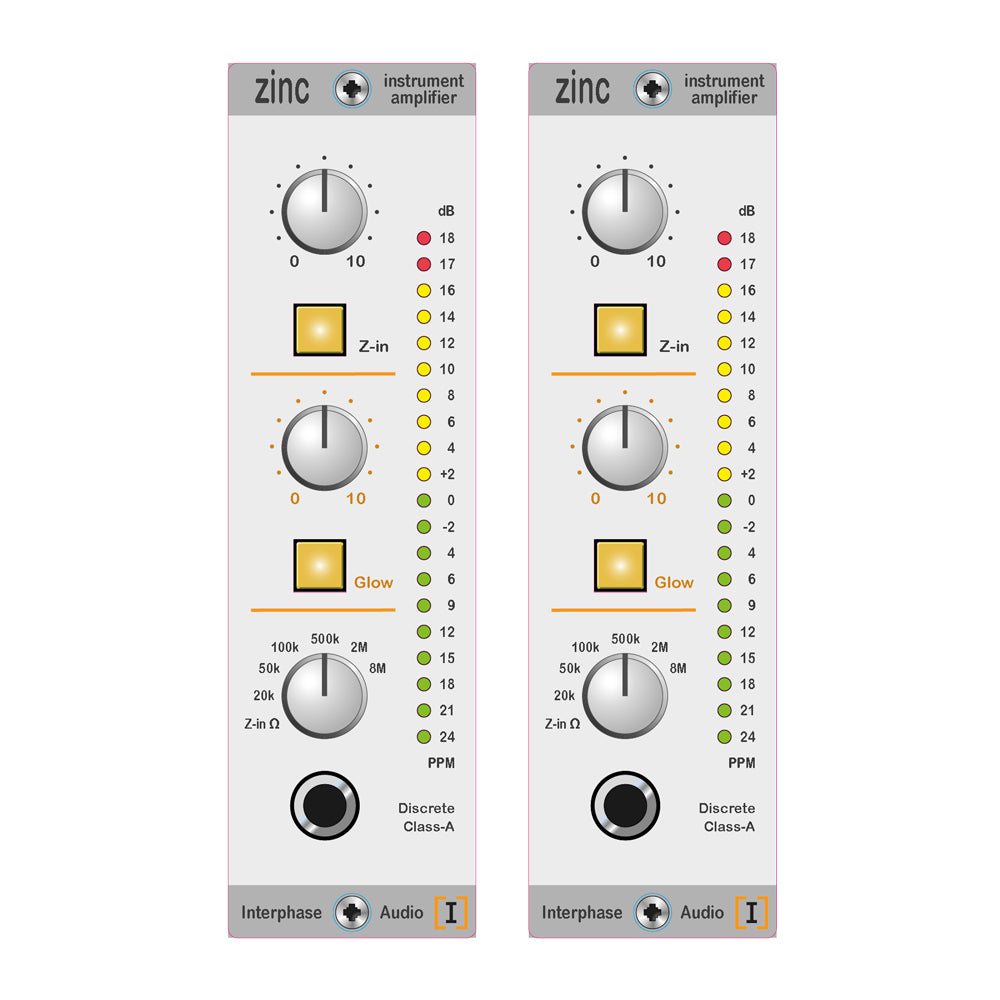

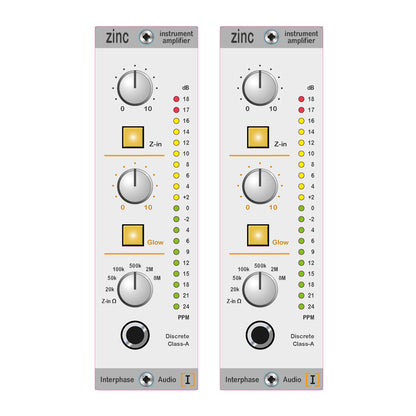

Zinc Duo is two of our Zinc modules in a single product box.

Zinc is a universal instrument amplifier module

The instrument amp uses the input from the rack, and has a gain range of -20 to +20dB
Switching to the Z-in on the front panel, the gain range becomes 0 to 40dB

The glow function works on either input and introduces valve (tube) distortion (2nd and 3rd harmonics). Try it !

The Z-In Ω rotary switch changes the input impedance of the Z-input, actually changing the tone.
This is most effective on electric guitar, but can be used on anything you like.

Zinc features Barium, our reference bargraph meter.

Specifications:

• Input Impedance (XLR): 20k
• Input Impedance (Jack): 20k to 8M variable
• Maximum Input Level (unity gain): +26dBu (Octa module)
• Maximum Input Level (unity gain): +22dBu (500 module)
• Frequency Response (-1dB): 15Hz to 40kHz
• Frequency Response (-3dB): 7Hz to 80kHz
• Noise floor (typical, unweighted, XLR): -100dBu
• Noise floor (typical, unweighted, Jack): -80dBu
• Total Harmonic Distortion (Glow off): 0.0004%
• Inter Modulation Distortion (Glow off): 0.0004%
• Common Mode Rejection (XLR): -80dB
• Maximum Output Level: +32dBu (Octa module)
• Maximum Output Level: +26dBu (500 module)
• I/O connections (Rack XLRs): pin 2 +, pin 3 -, pin 1 ground
• I/O connections (Jack, unbalanced): Tip +, Sleeve ground
• Current requirement: 100mA (maximum) per rail
• Size and weight: Standard 500 Series, 0.4 kilos
